Thursday, July 8, 2010

Wednesday, July 7, 2010

Screen Printing with Mordents, Acids, and Alkalis




I had an idea... well more of a need. I wanted to put my logo on my designs without driving my coast of making up, while still keeping the product natural and organic.

I began by burning a screen with the image that I use as my logo, its a mannequin that I have used in my artwork for years named Janice. I have not burned a screen in almost a year. Actually the burning part was not the problem, I didn't coat the screen with the emulsion evenly. I think if I had the product would have come out much better.

After burning the screen I made up three different pastes. I combined a translucent pigment stretcher used primarily in screen printing with an iron mordent, cream of tartar, and soda ash. The iron mordent and the cream of tartar mixed into the water salable clear base easily. The soda ask did not dissolve so easily. I dissolved the soda ash in 4oz. of boiling water before stirring it to the clear bass. Next the soda ash past was spread over a paper to soak up access water.

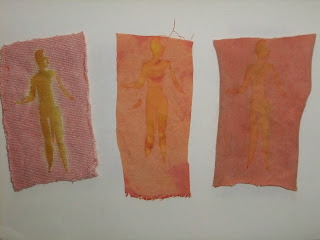

After paste were mixed, I then printed the three different mixtures onto three different fibers, organic cotton, bamboo fleece, and silk. Making 9 samples total. After printing the samples were left to dry for 30 min. The silk was a heavy twill, I tried it on something lighter but the image would only bleed.

The samples were placed in a madder root dye bath with an alum mordent for 10min.

The image comes out fantastically with out modify the bath too much.

Tuesday, July 6, 2010

pH Changes in the Dye Bath















This is where I spent the majority of my time. I was completely amazed at the range of color that was produced from simply shifting the pH level of the dye bath to more acidic or alkali.

The Dyes Tested:
Pomegranate
Madder
Osage Orange
Annoto
Brazil Wood
Log Wood
Cutch
Myrobalan
Tannin

pH Shifters Used:
Lemon Juice (pH 3)
Cream of Tarter (pH 3-4)
Baking Soda (pH 8)
Soda Ash (pH 11)
Lye (pH 12-14)

I tested different combination from the listed above on three different fibers.
Bamboo Fleece (Cellulose)
Organic Cotton (Cellulose)
Silk (Protein)

I wanted to see the different affects each combination would have on the different fibers. I also wanted to see how far I could push the protein fibers on the pH scale before they would fall apart. They held up okay till the lye. I did this one with gloves, goggles, and under a fume hood.

Independent Study Projects





My time spent in my Independent Study Chemistry class has been divided into studying three different processes, the first one being subtractive color. I first dyed 8 pieces of silk with 8 different dye recipes.
1. Myrobalan and Alum Sulfate
2. Osage Orange, Alum, and Lemon Juice (dye bath pH 3)
3. Pomegranate, Alum, and Lemon Juice (dye bath pH 3)
4. Madder, Alum, and Lemon Juice (dye bath pH 3)
5. Madder, Alum, and Soda Ash (dye bath pH 10)
6. Pomegranate, Alum and Soda Ash (dye bath pH 10)
7. Cutch, Alum and Soda Ash (dye bath pH 10)
8. Madder, Cutch, Pomegranate, Alum and Soda Ash (dye bath pH 10)

I choose this as my starting point because I have not come up with a satisfying green dye recipe. By dipping the yellow samples in indigo I might find something I like. I also thought it would be a nice time to experiment with some red and orange samples as well. I am still diping to ket my desired color. The coloring in silk is very illusive, it dries anywhere from 2 to 8 shades lighter than its dipped color. Plus silk which is a protein fiber is not a fan of the alkali indigo bath. The pH changes in the dye bath and the effects that it has on both Cellulose and Protein fibers is what lead me to my next project.

Thursday, July 2, 2009

Horse Hair

Horse hair can be woven with out being spun first, the fibers are very long and strong and, and can stand the pulling and tugging of the loom with out breakage. This is because of its high protein make up. The hair does not absorb water very well, however it can be felted with a lot of work and hot soap water.

Horse hair has many different uses like being make into rope, fishing line, milk sieves, horse reins, horse rugs, bushes, and jewelry

All horse colors begin with a genetic base of red or black with the addition of allies for variation  in color tone spotting, stripping, deletion of color, or other affects of aging.


Coat color alleles affect melanin, the pigment or coloring of the coat. There are two different distinct types of melanin: phaeomelanin, which is seen as red to yellow color, and eumelanin, is seen as brown to black. All coloration genes in mammals affect either the production or distribution of these two chemicals phaeomelanin and eumelanin . Allele affecting pigment cells do not change the pigment chemicals themselves but rather by acting on the placement of pigment cells produce distinct patterns of unpigmented pink skin and with the reaction of white hair.

Genes appear in groups of two, with each single gene "option" being called an allele. The terms Alleles and Modifiers are used to describe the same concept. An allele identified with a capital letter is a dominant gene, one identified with a lower-case letter is a recessive gene. Because sex cells (sperm and ova) contain only half the usual number of chromosomes, each parent sends one allele in each gene combination to the ensuing offspring. When an individuals gene set contains identical copies of the same allele, it is named homozygous for that gene. When it has two opposite (different) alleles, it is heterozygous. For arecessive gene to be shown, it must be homozygous, but a dominant gene will be shown whether it is heterozygous or homozygous. A horse homozygous for a certain allele will always give it to its offspring, while a horse that is heterozygous holds two different alleles and can give either one.

Wednesday, July 1, 2009



For my tea dye I decided to try passion tea, which is a pick herbal tea. I soaked my pre mordant fabric in a bath of hot water and 5 tea bags  for 24 hours.

I still was searching for an Orange so i decide to try tiger lilies. I pored boiling water over the flower petals and let my pre mordant fabric soak over night. I came out green I was very surprised!


I still was tyring to get an orange tone so i decide to mix a red (beets) and a yellow (onion skins). I also wanted to see what the beets would do so i dived my beet bath as well. I blended the beets with hot water, and then poured boiling water over the paste. I poured boiling water over the onion skins as well. Then I let my pre mordant swatches sit over night in each bath. I got very close to an orange that time.
